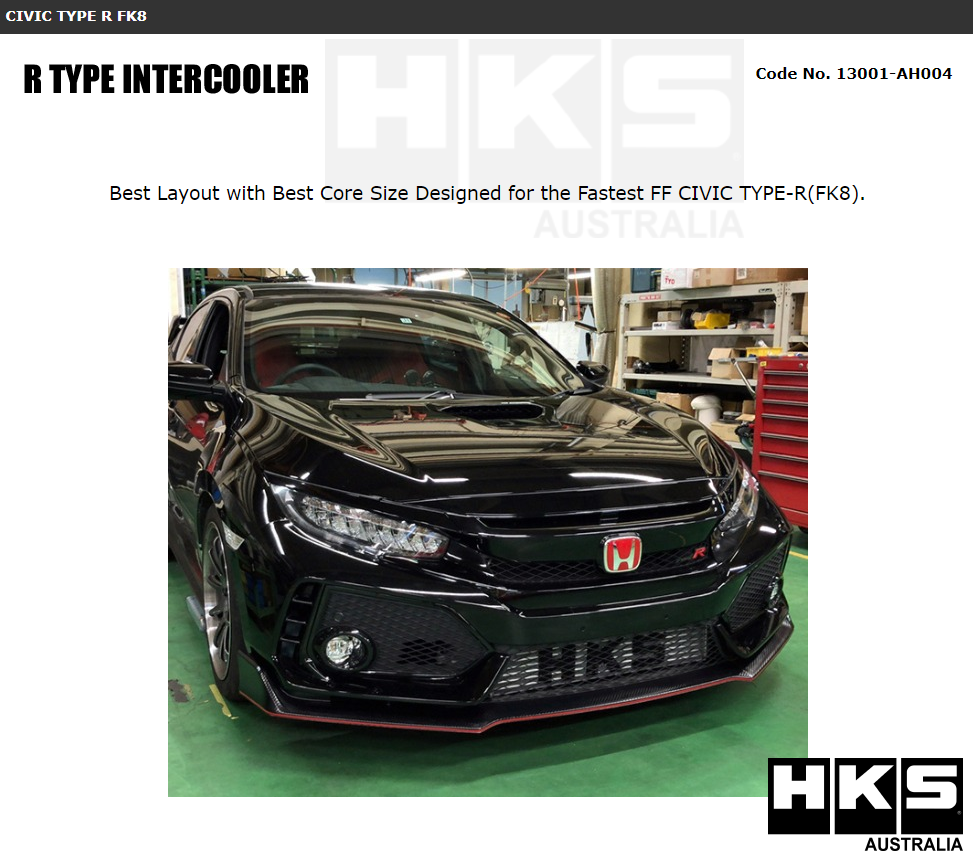

HKS R Type Intercooler Kit Suit Honda Civic Type-R FK8

HKS R Type Intercooler Kit Suit Honda Civic Type-R FK8




Code No. 13001-AH004



Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8).






  • The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
    →HKS intercooler is using a larger size intercooler to maintain cooling performance.
  • The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
    →HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.





  • Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.
    Core Size  ★HKS:695mm x 178mm x 100mm  ★Stock:680mm x 143mm x 64mm
  • Minor modification of the fan shroud and rubber part that comes in contact with the core is required.



【Test Data】




Vehicle Model Engine Model Year Type Core Size・Location Type Code No. Price Instruction Manual Remarks
CIVIC TYPE R FK8 K20C 17/09 - R type INTERCOOLER 695x178x100 R type 13001-AH004 13001-AH004.pdf ・Installation requires approx. 4 hours. ・I/C IN & OUT pipes included.
