HKS Power Editor Suit Honda Civic Type R FL5

HKS Power Editor Suit Honda Civic Type R FL5

SKU:HKS42018-AH013

CIVIC TYPE R FL5

Code No. 42018-AH013



Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.



HKS Power Editor Suit Honda Civic Type R FL5

HKS Power Editor Suit Honda Civic Type R FL5



■Outline

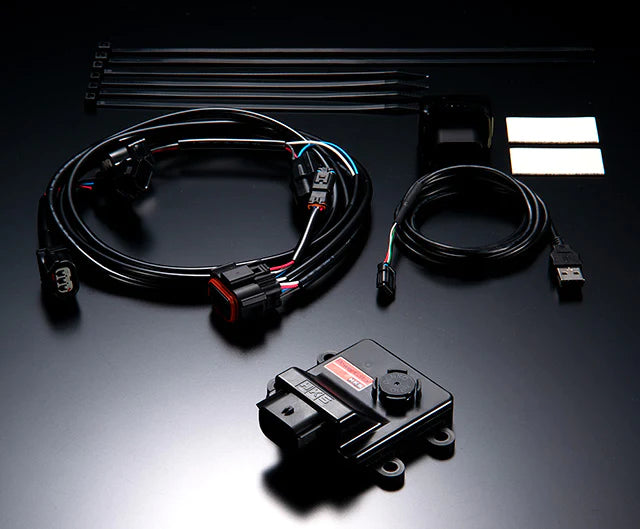

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.

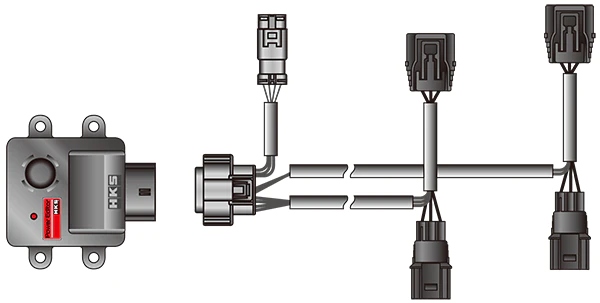

  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.

Use provided USB cable to connect to computer.


HKS Power Editor Suit Honda Civic Type R FL5



■Main Function

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.



■Features

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.

- This product is for a stock ECU data and not available to use with a customized data prepared by a Reflash tool.


HKS Power Editor Suit Honda Civic Type R FL5

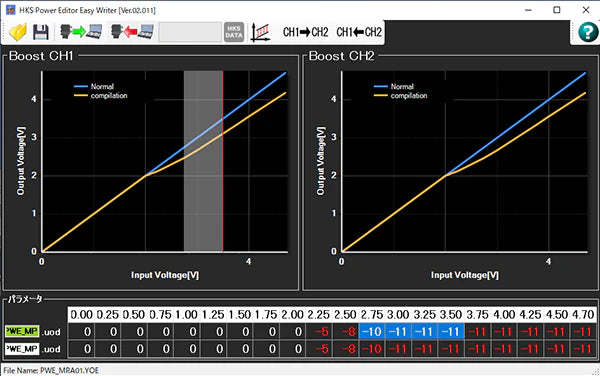

Easy Writer for Power Editor

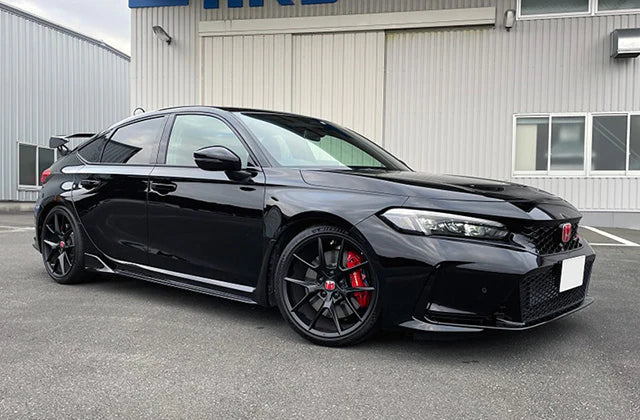

■Specification of Test car

  • HONDA CIVIC Type R FL5 (JDM)

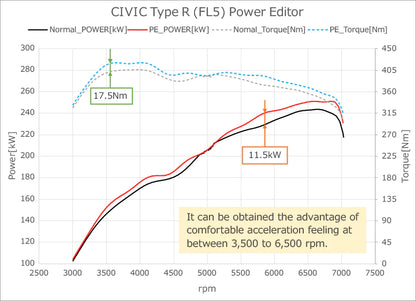

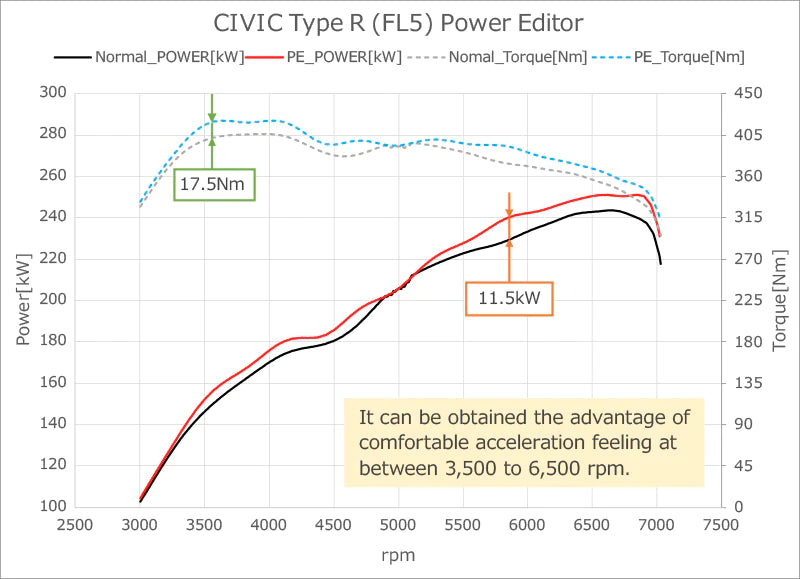

■Performance Data

  Stock Power Editor
Maximum Variation (Output) 11.5kW(15.6PS)/5840rpm
Maximum Variation (Torque) 17.5Nm(1.78kgf・m)/3560rpm
Maximum Output 243.3kW(330.7PS)/6650rpm 251.2kW(341.5PS)/6610rpm
Maximum Torque 406.1Nm(41.4kgf・m)/3970rpm 420.5Nm(42.9kgf・m)/4010rpm
Maximum Boost Pressure 134.4kPa(1.37kgf/cm2) 152.0kPa(1.55kgf/cm2)


HKS Power Editor Suit Honda Civic Type R FL5




Vehicle Classification Model Engine Model Year Code No. Manual Remarks
CIVIC TYPE R FL5 K20C 22/09 - 42018-AH013
