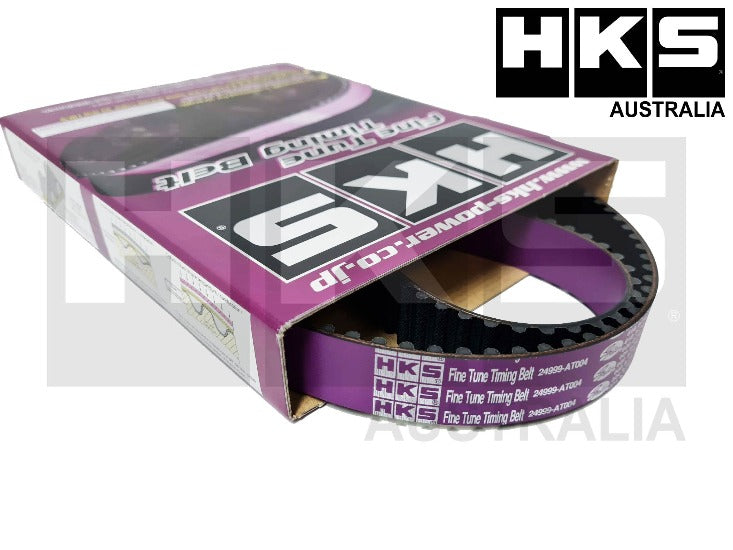

HKS Fine Tune Timing Belt Suit Toyota 2JZ-GTE, 2JZ-GE

HKS Fine Tune Timing Belt Suit Toyota 2JZ-GTE, 2JZ-GE


Fine Tune Timing Belt

This timing belt is best suited for use with HKS Slide Cam-Pulley. Optimised belt strength for each engine application makes the Fine Tune Timing Belt ideal for use with HKS Slide Cam-Pulleys for high power/high RPM engine.

  • Belt strength has been optimised for each engine application and designed to allow stable belt tension even when heat expansion occurs in the engine
  • Previous timing belt manufacturing techniques have involved with applying pressure from the outside to the teeth. This applies tension to teeth making them weaker. By forming a mould with the correct shape of teeth to begin with, it allows the teeth shape to be formed without compromising belt strength and can decrease the belt skipping at high torque engine.
  • Teeth rubber is made from H-NBR grade rubber for additional strength.

* Material and/or molding method may be slightly different depending on application.

* Necessity of Changing the Balancer Belt

The balancer is designed to reduce engine vibration by creating a vibration in the opposite direction to the engine. When used at high RPM such as on circuits, the vibration will naturally increase which causes more load on the balancer. Moreover, the balancer rotates at double speed of the crankshaft which will cause the belt to stretch at a faster rate compare to the other belts. This stretch will eventually put the balancer out of synchronization with the crankshaft, causing more vibration and then eventually the belt may break up. For this reason, HKS recommends that when the timing belt is changed, the balancer belt should also be changed with a strengthened item to allow the balancer for effective, accurate and reducing stress on the engine and chassis.

Replaces stock belt # 13568-49036

Belt Size 143Y25.4

ARISTO JZS161 2JZ-GTE 97/08-04/12 24999-AT004
ARISTO JZS160 2JZ-GE 97/08-04/12 24999-AT004
ARISTO JZS147 2JZ-GTE 91/10-97/07 24999-AT004
CRESTA JZX101 2JZ-GE 96/09-00/10 24999-AT004
CRESTA JZX91 2JZ-GE 92/10-96/08 24999-AT004
SUPRA JZA80 2JZ-GE 93/05-02/08 24999-AT004
SUPRA JZA80 2JZ-GE 93/05-02/08 24999-AT004
SOARER JZZ31 2JZ-GE 91/05-00/12 24999-AT004
CHASER JZX101 2JZ-GE 96/09-01/07 24999-AT004
CHASER JZX91 2JZ-GE 92/10-96/08 24999-AT004
MARK II JZX101 2JZ-GE 96/09-00/10 24999-AT004
MARK II JZX91 2JZ-GE 92/10-96/08 24999-AT004
