(TURBO) GASKET for OIL OUTLET GT49

Code No. 14009-AK012





GASKET for OIL OUTLET GT49



The gasket for the oil outlet for HKS GT Turbine Series. Functional spare parts for maintenance and repair.





■Summary

  • Specially designed for the oil outlet shape in HKS GT Turbine Series (GT4950_BB, GT5565_BB, GT6290_BB).*
  • Compatible with the oil inlet for GT75100_BB, GT75115_BB



■Components

  • Gasket for Oil outlet * 2 pcs



■Specification

  • Compatible bolt size : M8
  • Mounting hole pitch : 38 mm
  • Flow path diameter: 13.5 mm
  • Thickness : 0.5 mm



■Compatibility

  GT4950_BB GT5565_BB GT6290_BB GT75115_BB GT75115_BB
OIL INLET - - -
OIL OUTLET 14009-AK002 14009-AK002

* The existing 14008-AK001 cannot use because the outline of the gasket will contact the turbo main unit when attached.

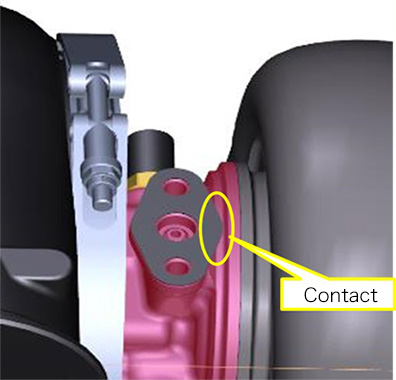

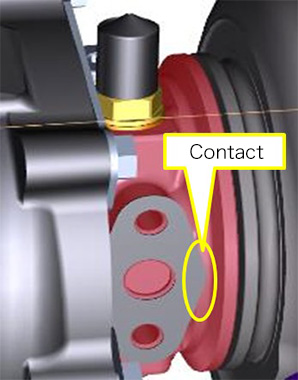

Existing gasket (14008-AK001) contact part

GT75100_BB・GT75115_BB

GT4950_BB・GT5565_BB・GT6290_BB







Product Code No. Manual Remarks
OIL OUTLET GASKET 14009-AK012 - Mounting hole pitch 38 mm for M8. - Flow path dia. 13.5. - Compatible with GT75 series oil inlet. - Includes 2 pcs.
