(SUSPENSION) Optional Parts for HIPERMAX series Damping Force Adjustment Extension Cable

HIPERMAX SERIES

HIPERMAX Series option parts

  • Wrench Set (2 pcs)

  • Universal Bracket (2 pcs)

  • Installation Spacer (2 pcs)

  • Spring Set (2 pcs)

  • Dustboots Set (Black) (2 pcs)

  • Dial Set for Inverted Type (Gold) (2 pcs)

  • Damping Force Adjustment Cable (2 pcs)

  • Adjustment Dial (1 pcs)

  • Adjustment Knob Set for Inverted Strut Type (2 pcs)

  • Rubber Upper Bearing Set for Inverted Strut Type (2 pcs)

  • Spanner Wrench (12.7sq)
    (1 pcs)

DUST BOOTS SET

Installation of these dust boots prevents damage to the damper from stepping-stones and enhances durability of the damper.

BUMP RUBBER (2 pcs SET)

THRUST WASHER

For easier ride height adjustment of a normal coilover damper, insert this washer between the spring and lower seat.

HIPERMAX Series option parts

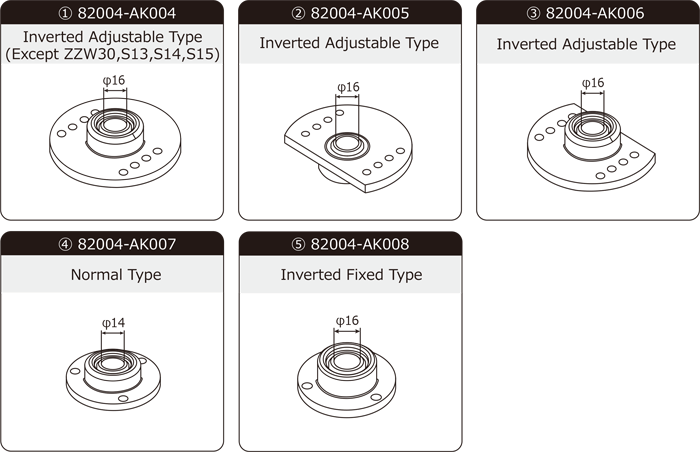

SPHERICAL BEARING (2 pcs set)

The spherical bearing is press-fit to the spherical body. Use this bearing assembly when a pillow ball of a pillow upper mount is worn out as a repair part. Easy bolt-on installation.

* NOTE :
Select correct one referring to the application chart below. The shape must be the same as the one previously installed.

SPHERICAL BEARING (2PCS SET)
■HIPERMAX R
(6) R(FRONT)[ZC33S/GXPA16]
(7) R(FRONT)[JW5]
(8) R(FRONT) [S13,S14,S15]
■HIPERMAX MAX IV SP
(1) ZN6(F), CT9A(F), CZ4A(F), GDB(E-G)(F), GRB(F)
(2) －
(3) S15(F)
(4) ZN6(R), S15(R), BNR32(F), BNR32(R), BNR34(F), BNR34(R), R35(F), R35(R), Z33(F), Z33(R), CT9A(R), CZ4A(R), GRB(R), FD3S(F), FD3S(R)
(5) GDB(E-G)(R)
(6) －
■HIPERMAX S
(1) ZN6(F), CP9A(F)
(2) －
(3) －
(4) －
(5) －
(6) －
■HIPERMAX MAX IV GT
(1) ZN6(F), CP9A(F)
(2) －
(3) －
(4) －
(5) －
(6) －
■HIPERMAX S-Style X
(1) －
(2) #CR30W(F), #NH10W(F), AZR60G(F), ZRR70W(F), E52(F)
(3) NCP31(F), QNC21(F), NHW20(F), ZVW30(F), ZVW4#W(F), GSR50W(F), GGH20W(F), C25(F), RF3(F), RG1(F), RK1(F)
(4) JZS161(F), JZS161(R), JZS171(F), JZS171(R), JZS177(F), JZS177(R), UCF20(F), UCF20(R), UCF30(F), UCF30(R), GRS18#(F), GRS18#(R)
(5) －
(6) －
■HIPERMAX D'
(1) －
(2) －
(3) －
(4) JZX100(F), JZX100(R), JZX110(F), JZX110(R), S13(R), S14(R), S15(R)
(5) －
(6) －
